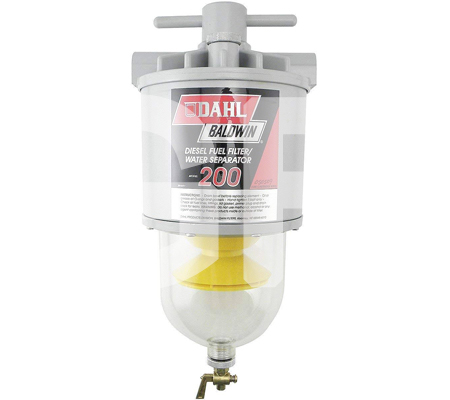

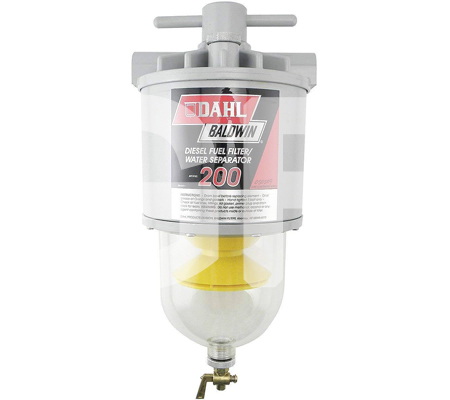

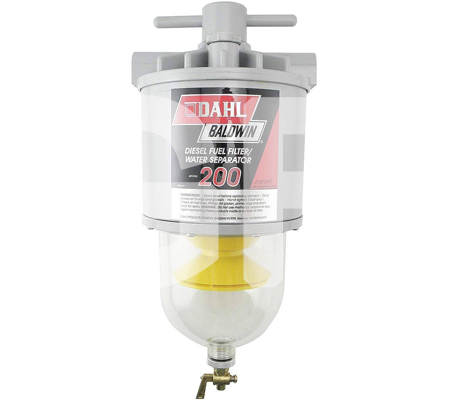

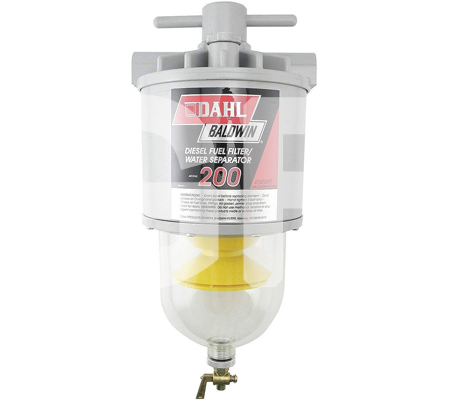

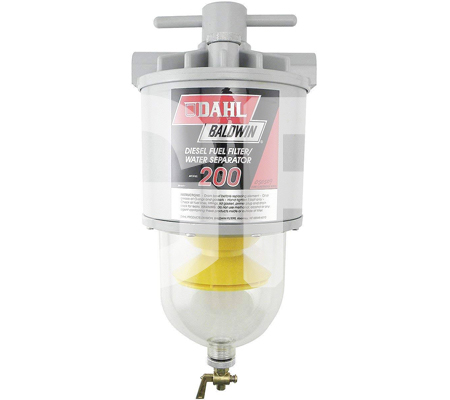

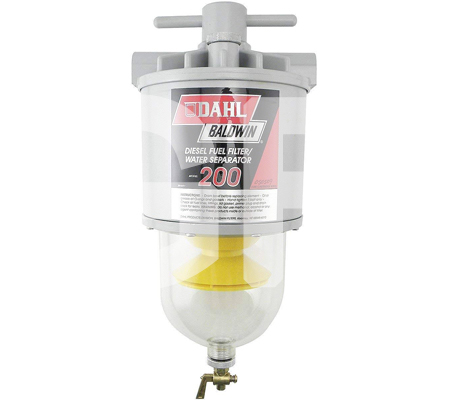

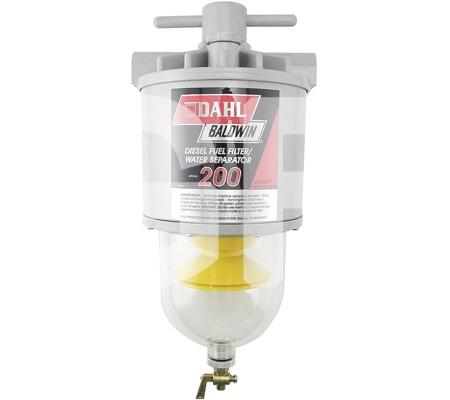

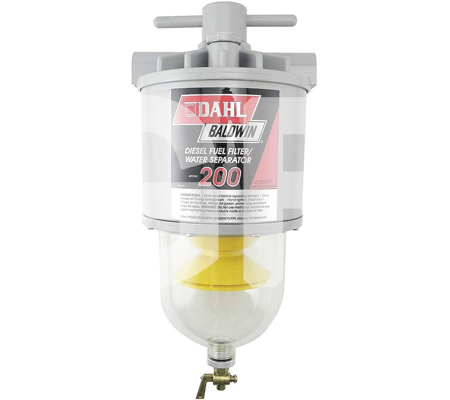

DAHL MODEL 200

DAHL MODEL 200

  • Cummins & Detroit eight-cylinder diesel engines
  • Caterpillar to 1000HP
  • Most diesel engines up to 1000HP
  • Construction and agricultural machinery
  • Medium size generators
  • Small merchant ships
Category:

Product Description

Flow resistance 1.0 inches of mercury

Flow resistance 1.0 inches of mercury

Maximum operating pressure 25 P.S.I.

Temperature range -50F to + 212F / -45.5C to + 107.2C

7/8 inch hole thread. Step 14

Height 16 3 | 4 inches (425.5mm)

Width 7 1 | 2 inches (190.5mm)

Depth 7 3 | 4 inches (196.9mm)

2 ½ inch (63.5mm) removal depth

Bowl Capacity 24 ounces (672gr)
